contourex®
SBR foam
contourex®
SBR foam
contourex®
SBR foam
What characterizes
our products
Bildtitel
Untertitel hier einfügenButton
Bildtitel
Untertitel hier einfügenButton
- three-dimensional pore structure
- unique quality charateristics
- unique comfort
- unique feeling
- durable elasticity
- outstanding restoring force
- famous climate regulations
learned from nature...
The outstanding properties of our contourex® SBR foam meet the requirements for maximum comfort. The particularly strong and durable elasticity ensures high-quality cushioning and padding. The material, which is also open-pored on the surfaces (photo left), has an optimum climate-regulating effect by being air-permeable, sweat-absorbent and sweat-releasing in an ideal ratio.
... the customer notices this immediately!
What characterizes
our products
-
Bildtitel
Untertitel hier einfügenButton -
Bildtitel
Untertitel hier einfügenButton
- three-dimensional pore structure
- unique quality charateristics
- unique comfort
- unique feeling
- durable elasticity
- outstanding restoring force
- famous climate regulations
learned from nature...
The outstanding properties of our contourex® SBR foam meet the requirements for maximum comfort. The particularly strong and durable elasticity ensures high-quality cushioning and padding. The material, which is also open-pored on the surfaces (photo left), has an optimum climate-regulating effect by being air-permeable, sweat-absorbent and sweat-releasing in an ideal ratio.
... the customer notices this immediately!
Standard qualities
Soft (pink)
Density 0,20 g/cm³
Shore OO=40
Our softest foam is especially suitable for upper padding as well as for helmet padding and bike seats. With these we mostly cushion particularly sensitive parts of the body. Due to its special density and high elasticity, the foam retains a pleasant padding effect even when it is highly compressed.

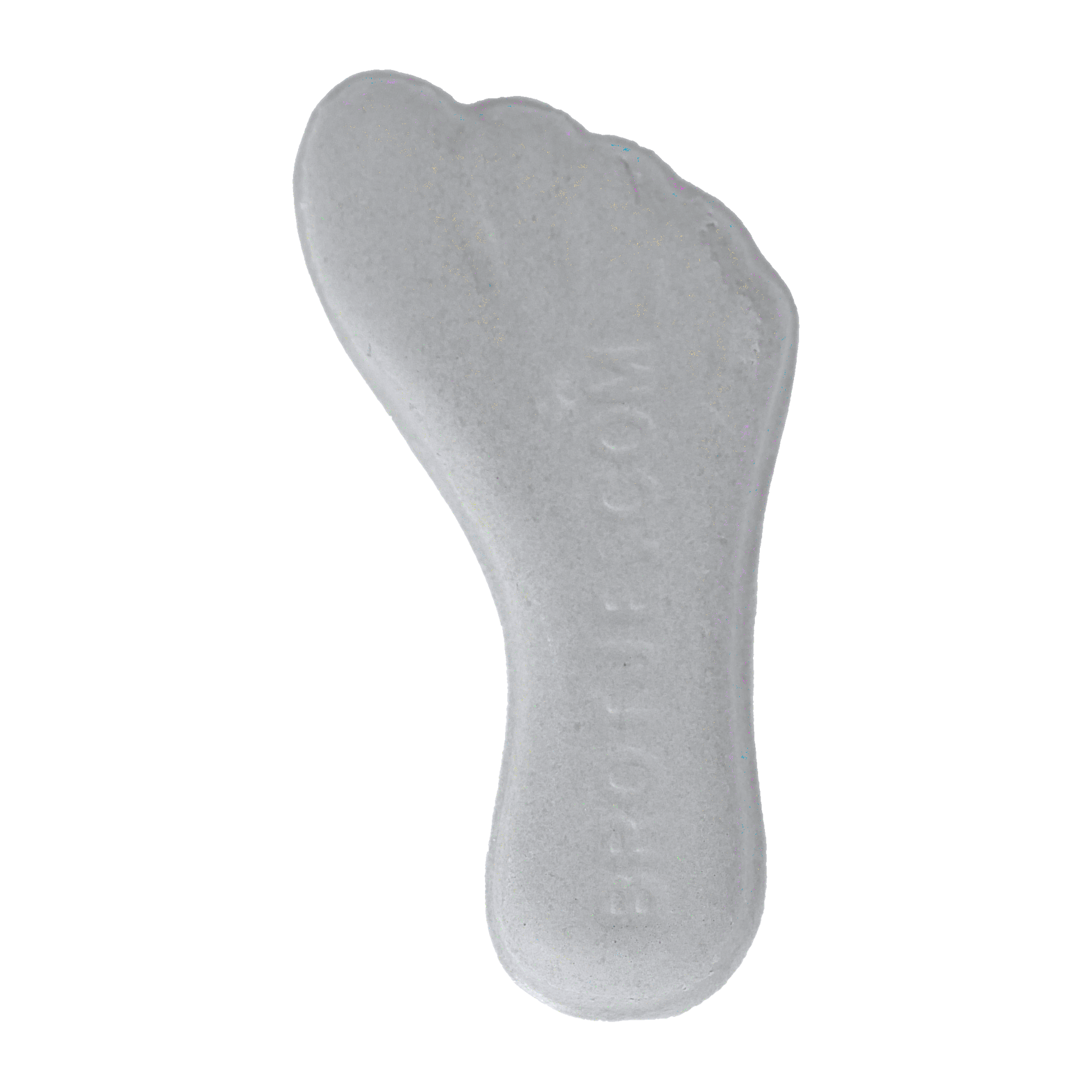

Medium (grey)
Density 0,28 g/cm³
Shore OO=50
Our medium hard foam has proven to be especially good for orthopaedic inserts, installation parts for the insole area as well as for equestrian sports. Here, in most cases the foam must not be too soft, as it would push through under higher weight loading. On the other hand,too hard a quality could cause reduced comfort.

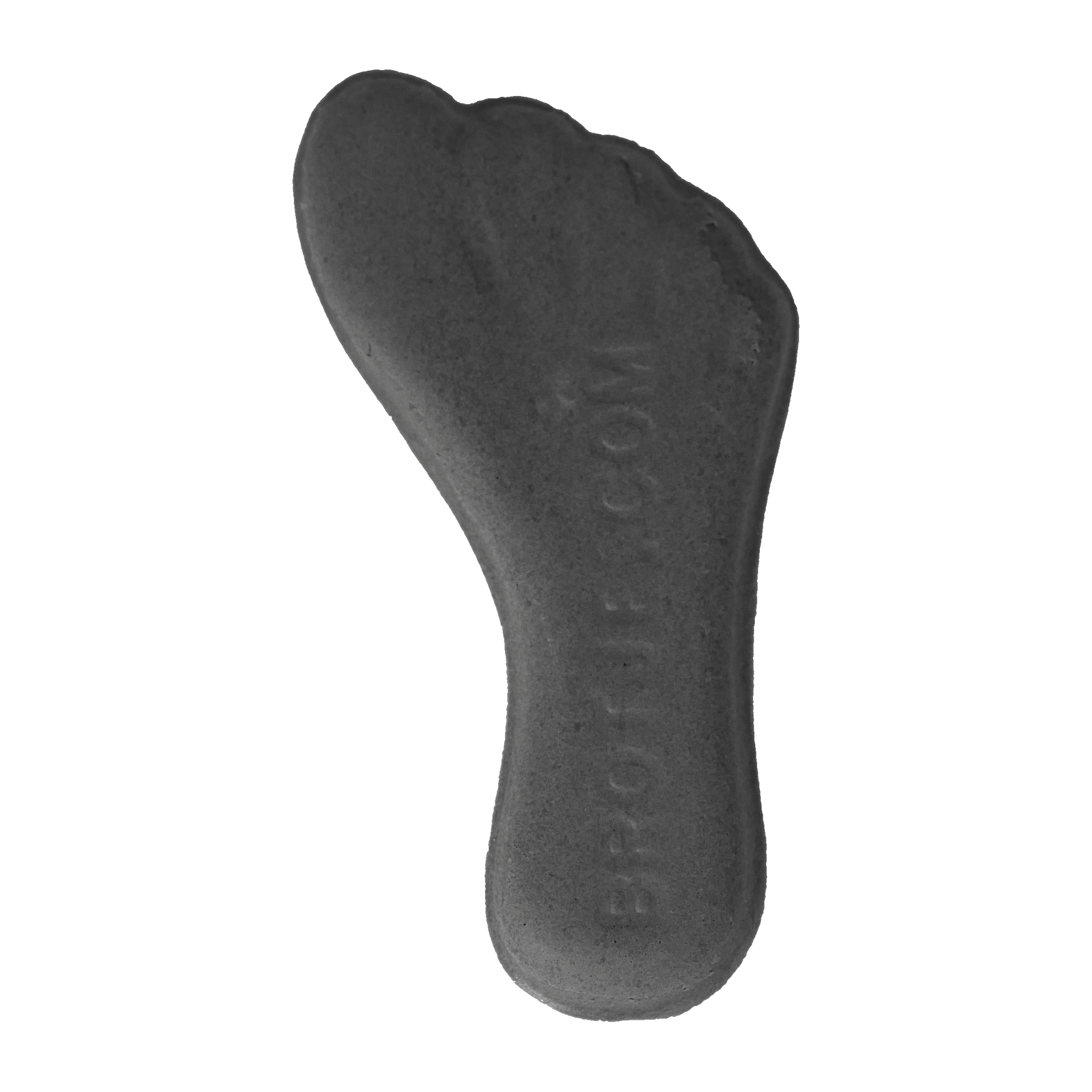

Hard (anthracite)
Density 0,28 g/cm³;
Shore OO=60
Our hard foam quality is especially popular in the orthopaedic segment, for arch supports, metatarsal pads and heel lift pads. The material provides a good support function, is easy to grind and glue, but despite its hardness it retains its incomparable latex foam comfort.
Very hard (blue)
Shore A=40
The hardest high solid SBR foam from Brötje - contourex® MAX. Specially developed for orthopaedics, contourex® MAX is used wherever special support or correction is required. The new material has a significantly higher solids content than all other contourex® foams. With a hardness of approx. 40 Shore A, contourex® MAX is particularly firm and ideal for orthotics.
Memory (red)
Density 0,20 g/cm³
Our visco-elastic foam is outstanding for applications in which properties such as pressure distribution and shock absorption are required, for example, for diabetic and sport insoles. The special foams absorbs 95.1% of impacts and individually distributes the pressure over a larger area, as the pressure inducer sinks into it, as if into sand.
Soft (pink)
Density 0,20 g/cm³
Shore OO=40
Our softest foam is especially suitable for upper padding as well as for helmet padding and bike seats. With these we mostly cushion particularly sensitive parts of the body. Due to its special density and high elasticity, the foam retains a pleasant padding effect even when it is highly compressed.
Medium (grey)
Density 0,28 g/cm³
Shore OO=50
Our medium hard foam has proven to be especially good for orthopaedic inserts, installation parts for the insole area as well as for equestrian sports. Here, in most cases the foam must not be too soft, as it would push through under higher weight loading. On the other hand, too hard a quality could cause reduced comfort
Hard (anthracite)
Density 0,28 g/cm³;
Shore OO=60
Our hard foam quality is especially popular in the orthopaedic segment, for arch supports, metatarsal pads and heel lift pads. The material provides a good support function, is easy to grind and glue, but despite its hardness it retains its incomparable latex foam comfort.
Very hard (blue)
Shore OO=40
The hardest high solid SBR foam from Brötje - contourex® MAX. Specially developed for orthopaedics, contourex® MAX is used wherever special support or correction is required. The new material has a significantly higher solids content than all other contourex® foams. With a hardness of approx. 40 Shore A, contourex® MAX is particularly firm and ideal for orthotics.
Memory (red)
Density 0,20 g/cm³
Our visco-elastic foam is outstanding for applications in which properties such as pressure distribution and shock absorption are required, for example, for diabetic and sport insoles. The special foams absorbs 95.1% of impacts and individually distributes the pressure over a larger area, as the pressure inducer sinks into it, as if into sand.
Soft (pink)
Density 0,20 g/cm³
Shore OO=40
Our softest foam is especially suitable for upper padding as well as for helmet padding and bike seats. With these we mostly cushion particularly sensitive parts of the body. Due to its special density and high elasticity, the foam retains a pleasant padding effect even when it is highly compressed.
Medium (grey)
Density 0,28 g/cm³
Shore OO=50
Our medium hard foam has proven to be especially good for orthopaedic inserts, installation parts for the insole area as well as for equestrian sports. Here, in most cases the foam must not be too soft, as it would push through under higher weight loading. On the other hand, too hard a quality could cause reduced comfort.
Hard (anthracite)
Density 0,28 g/cm³;
Shore OO=60
Our hard foam quality is especially popular in the orthopaedic segment, for arch supports, metatarsal pads and heel lift pads. The material provides a good support function, is easy to grind and glue, but despite its hardness it retains its incomparable latex foam comfort.
Very hard (blue)
Density
Shore OO=40
The hardest high solid SBR foam from Brötje - contourex® MAX. Specially developed for orthopaedics, contourex® MAX is used wherever special support or correction is required. The new material has a significantly higher solids content than all other contourex® foams. With a hardness of approx. 40 Shore A, contourex® MAX is particularly firm and ideal for orthotics.
Memory (red)
Density 0,20 g/cm³
Our visco-elastic foam is outstanding for applications in which properties such as pressure distribution and shock absorption are required, for example, for diabetic and sport insoles. The special foams absorbs 95.1% of impacts and individually distributes the pressure over a larger area, as the pressure inducer sinks into it, as if into sand.
contourex® memofoam
The contourex® memofoam developed by us and the biomechanical properties of the human skin, in physical terms, form a comparable visco-elastic system. This manifests itself, for example, in the fact that pressure is optimally distributed by body heat and body weight. The illustration shows the dynamic compressive load without contourex® memofoam on the left and with it on the right.
The contourex® memofoam developed by us and the biomechanical properties of the human skin, in physical terms, form a comparable visco-elastic system. This manifests itself, for example, in the fact that pressure is optimally distributed by body heat and body weight. The illustration shows the dynamic compressive load without contourex® memofoam on the left and with it on the right.
The „viscous“ properties (Fig. 3) of the foam also have an
excellent shock-absorbing effect of 95.1%
after 100,000 load cycles. The delayed
memory (resilience) of the foam in particular is the precondition, which enables contourex® memofoam to adapt to the foot as it constantly changes during the course of the day. This enables an individual footbed to be formed at any time.
The „viscous“ properties of the foam also have an
excellent shock-absorbing effect of 95.1% after 100,000 load cycles. The delayed memory (resilience) of the foam in particular is the precondition, which enables contourex® memofoam to adapt to the foot as it constantly changes during the course of the day. This enables an individual footbed to be formed at any time.

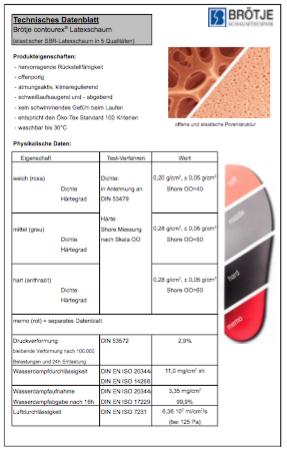

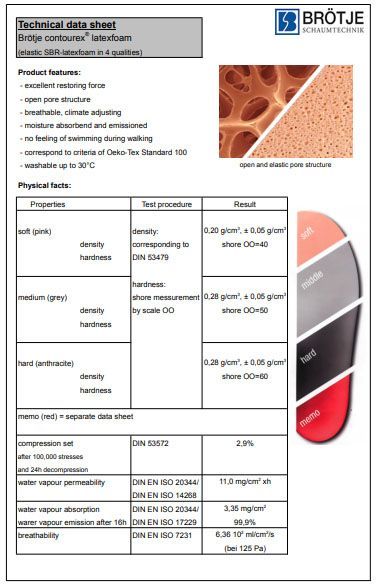

Technical
data sheet
(pink, grey, anthracite)
brochure 02
technical data sheet
(Foam quality: pink, gray, anthracite)
Prospekt 02
technisches Datenblatt
(Schaumqualität: rosa, grau, anthrazit)

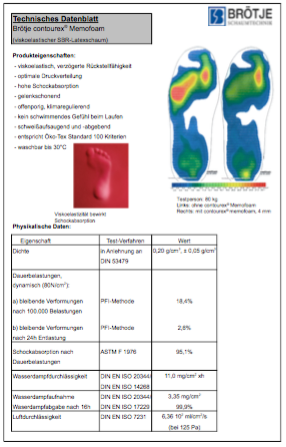

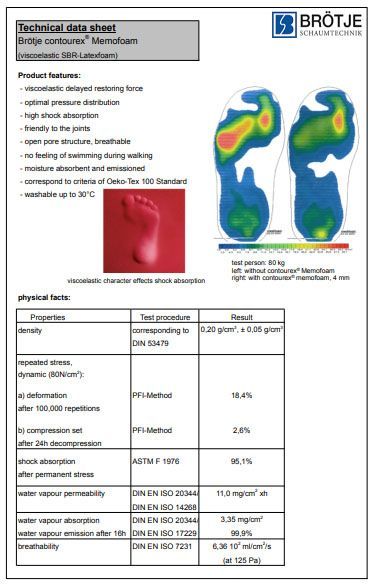

Technical
data sheet
(memory)
brochure 03
technical data sheet
(Foam quality: memo)
Prospekt 03
technisches Datenblatt
(Schaumqualität: memo)
